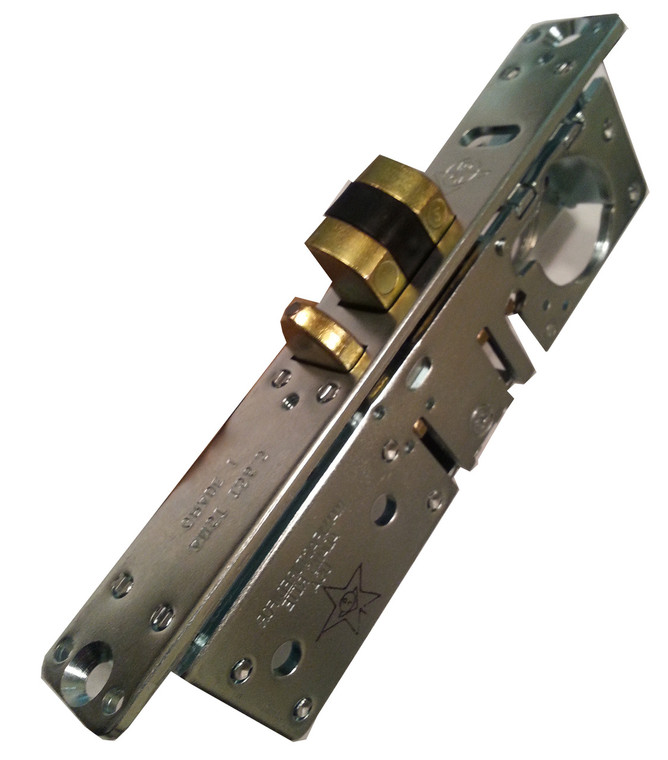

Adamsrite 4530 Standard Duty Deadlatch

4530 Standard Duty Deadlatch

Adams Rite
SKU:
4530
$104.00
(No reviews yet)
Weight:
2.00 LBS
Width:
0.10 (in)
Height:
0.10 (in)
Depth:
0.10 (in)
Current Stock:
Adding to cart… The item has been added
Description

Description: 4530 Standard Duty Deadlatches provide flexible traffic control during and after business hours. Designed to retrofit into the prep of older MS1850 Deadlocks and 4250 Deadlatches.

Function: The 4530 Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. 4530 Deadlatches are designed to fit without alteration, the stile cutout for older MS1850 Deadlocks and 4250 Deadlatches of same backset.

Operation: Turn key or operate handle to retract spring-loaded latch bolt. To hold bolt retracted, push it in and secure by reverse turn of key. Uses any standard mortise cylinder with MS® dimensioned cam.

Specifications:

Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.

Cylinder Backset: 7/8”, 31/32”, or 1-1/8” only

Case: Measures 1” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.

Latchbolt: 1/2” x 1” x 1/2” throw. All metal with hardened steel internal pins. Handing is reversible without special tools.

Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry.

FaceplateF: Measures 1-1/4” x 7-13/32”.

Strikes: Standard strike furnished is 4901-01 for flat jamb. For dimensions of this as well as radiused and/or short strikes see ACCESSORIES.

Cylinder Cam: 4530 Standard Duty Deadlatches are operable by any standard 1-5/32” diameter mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.

Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering. For information on handles and paddles see TRIM.

Standard Package: Individually boxed with strike and machine screws for mounting. Cylinders, paddles, and handles available separately. Shipping weight: 1-1/4 lbs.



Related Products: When purchasing this product, please consider the following related products, available separately:

Accessories Cylinders Trim Electric Strikes
Lock mounting accessories and options available separately. 4530 Standard Duty Deadlatches are operable by any standard 1-5/32” diameter mortise cylinder with MS® cam, dimensioned as shown. Please see CYLINDERS for more cylinder, thumbturn and trim ring information. Entry trim, paddles, handles and lever operators available separately. Application specific.
Warranty
Limited Warranty Products sold under the Adams Rite brand in the United States of America are warranted free from defects in workmanship and materials under normal use and service. This warranty does not cover defects or damage arising from improper installation, lack of or improper maintenance, improper storage, shipping and handling, corrosion, erosion, ordinary wear and tear, misuse, abuse, accident, unauthorized service, or use with unauthorized non-Adams Rite products or parts. This warranty is void if any modification is made to the product, regardless of whether the modification causes or contributes to the alleged defect. All modifications are made at the risk of the party making the modification. Should any defect of manufacture (in material or workmanship) occur in its products, Adams Rite, upon prompt notification and proof to its satisfaction that the product was defective in manufacture for the use intended by Adams Rite, will at its option, exchange the product, repair the product, or refund the price charged by Adams Rite, FOB factory within the stated time frame listed below. • All mechanical products for five (5) years from date of manufacture • Ultraline 7400 Electric Strikes for five (5) years from date of manufacture • All electrical products for three (3) years from date of manufacture, with the exception of the exit devices with the SE option • Exit devices with the SE option for one (1) year from date of manufacture. Adams Rite recommends that for optimal performance all exit devices with the SE option are installed and powered using PS-SE power supplies. Installing SE exit devices with PS-SE power supplies extends the warranty to five (5) years from date of manufacture.
