GMS KNOB/LEVER CYLINDERS

GMS Knob/Lever Cylinders

GMS Lock Cylinders
SKU:
K001-SC-26D-KD
$25.00
(No reviews yet)
Weight:
0.40 LBS
Width:
0.10 (in)
Height:
0.10 (in)
Depth:
0.10 (in)
Current Stock:
Adding to cart… The item has been added
Description
Model # Type Fits Tailpieces
K001 Knob/Lever cylinder Schlage knobs, levers, deadbolts and Yale levers* 5 tailpieces
K002 Knob/Lever cylinder Fits Arrow knobs and levers 3 tailpieces
K003 Knob/Lever cylinder Fits Sargent levers 3 tailpieces
* Converts to fit Yale levers with KIT-K001YA (scroll down).

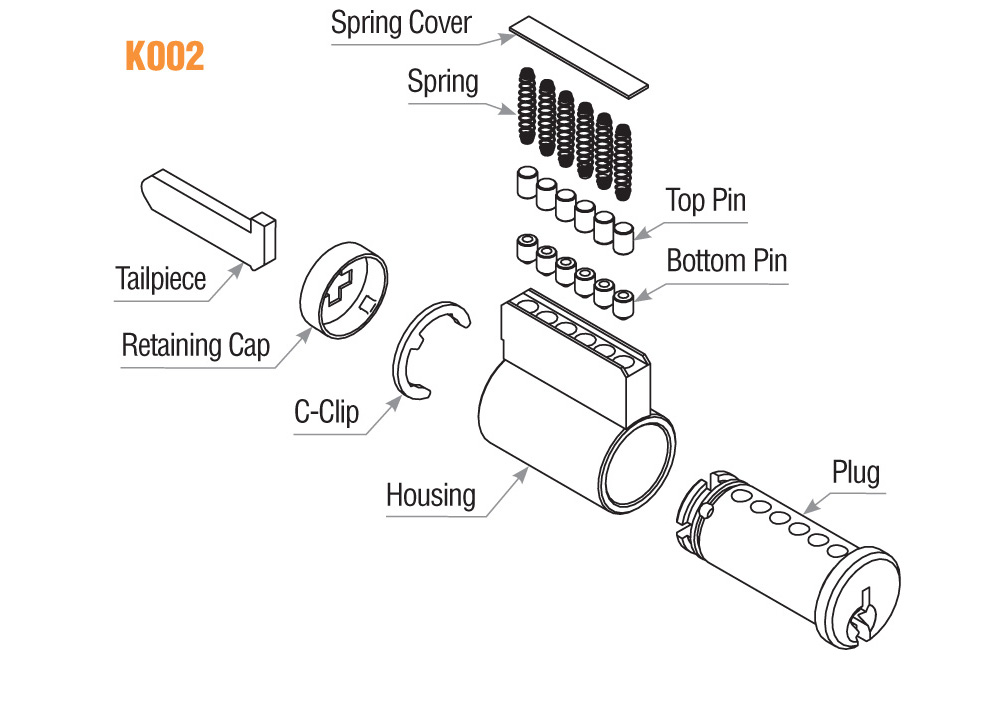

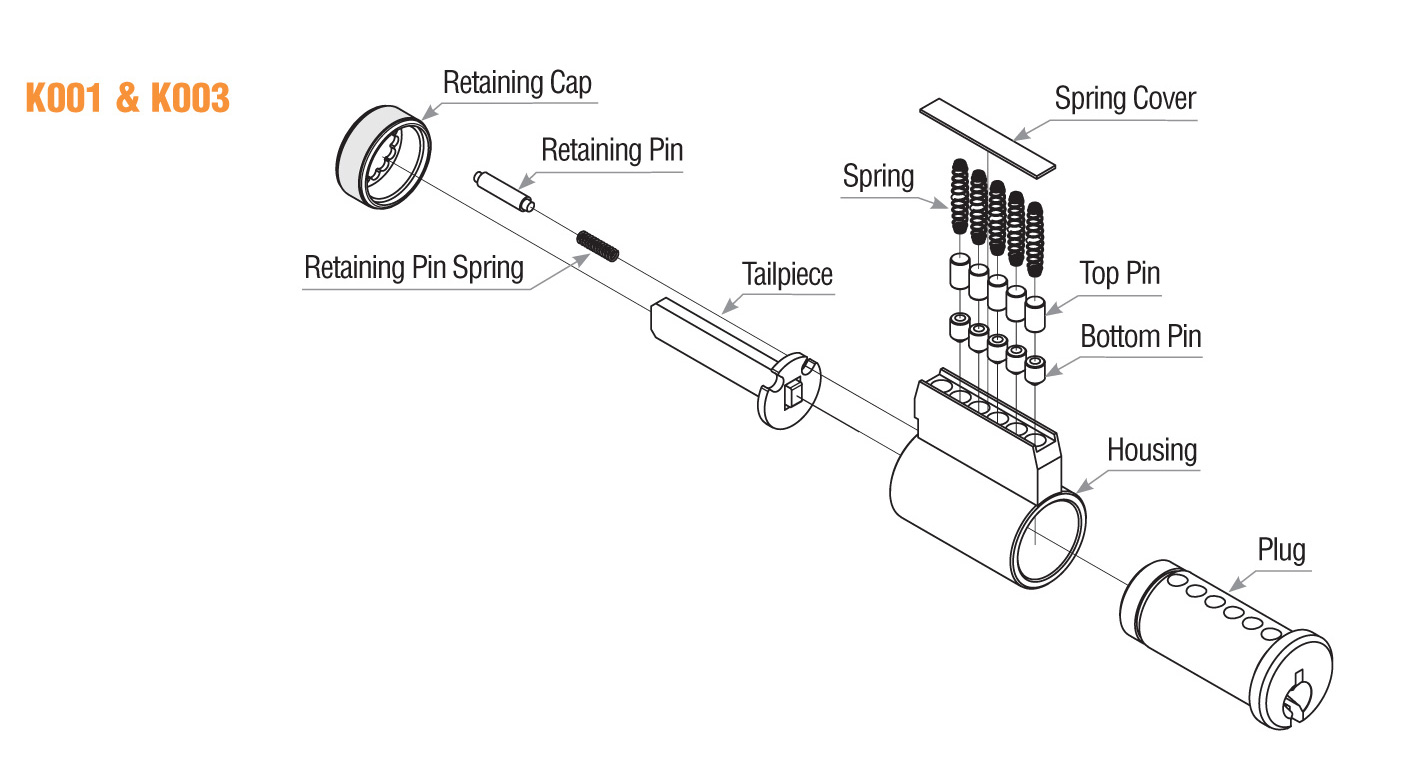

Knob/Lever Cylinder Schematic Drawingk001-k003-schematic.jpg

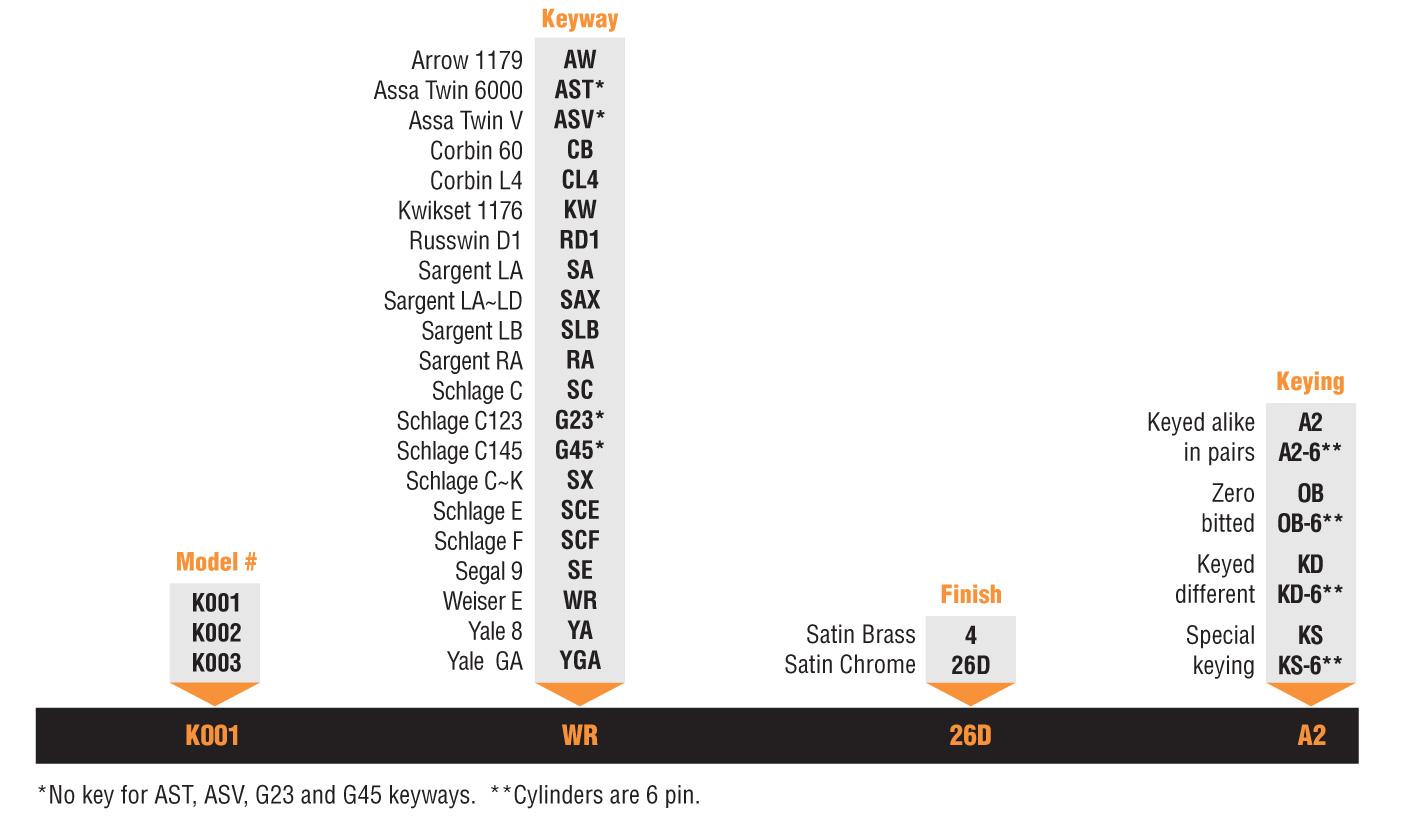

How to Order Knob/Lever Cylindershow-to-order-knob.jpg


Tailpieces

GMS manufactures multiple tailpieces to accomodate different applications.

All tailpieces are plated hardened steel for durability.

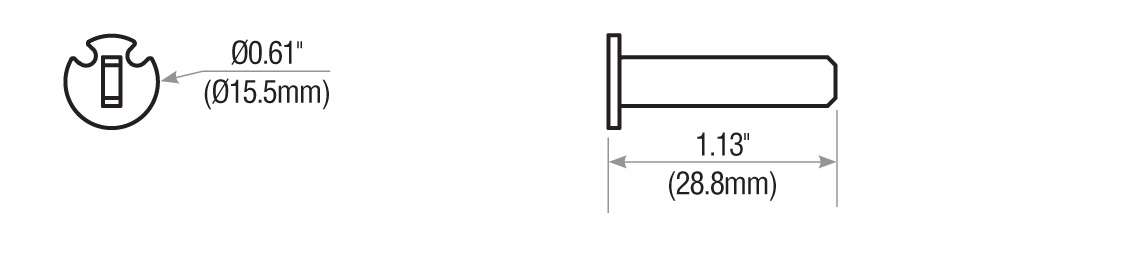

TLP-01

Tailpiece

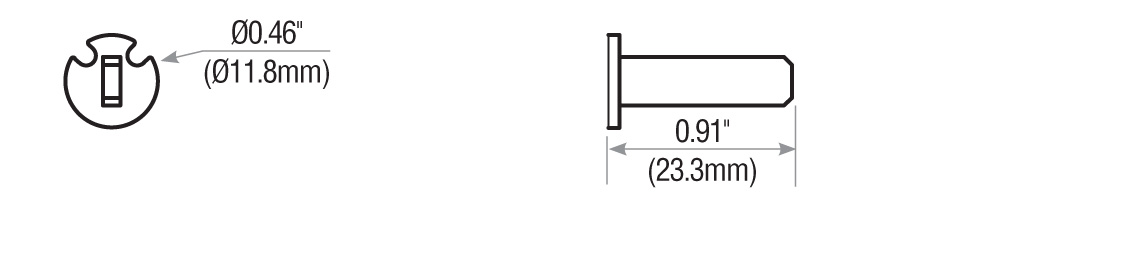

TLP-02

Tailpiece

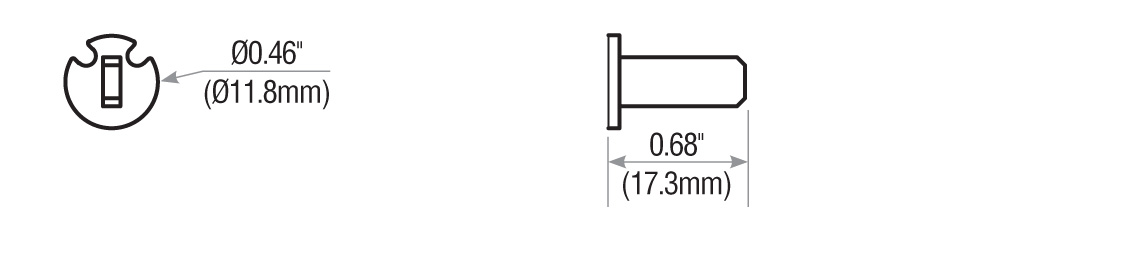

TLP-02

Tailpiece

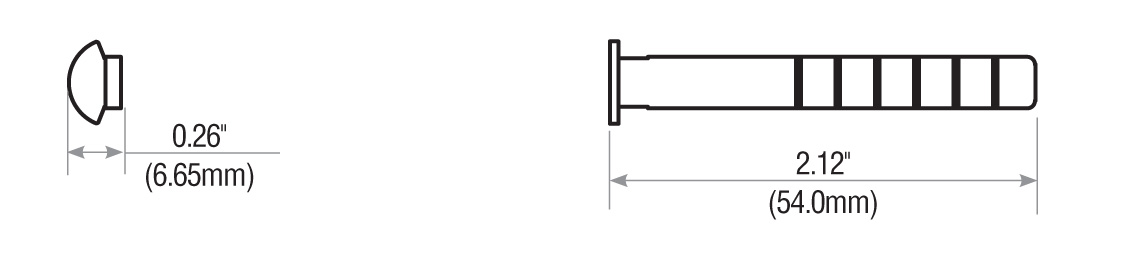

TLP-05

Breakoff Tailpiece

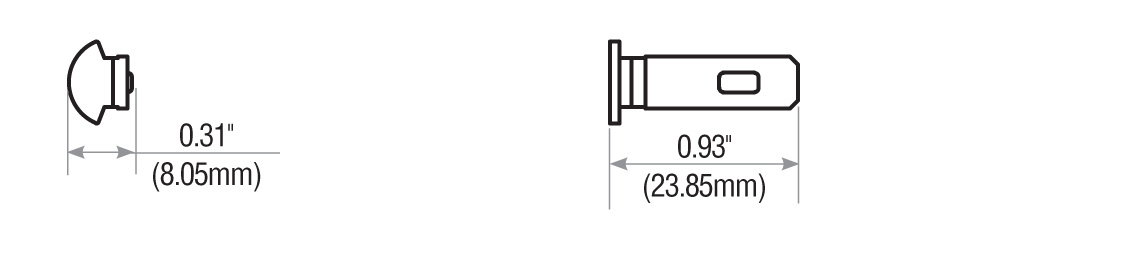

TLP-06

Tailpiece

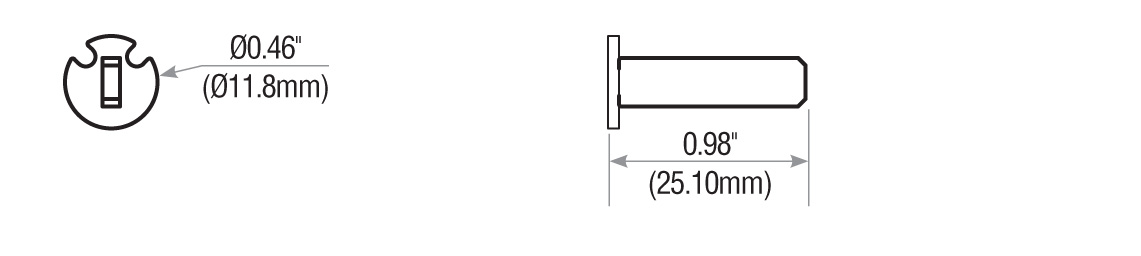

TLP-08

Tailpiece


Knob/Lever Cylinder Accessories

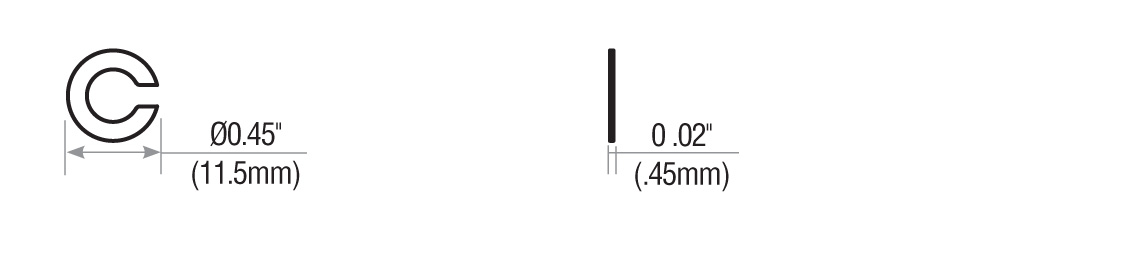

TLP-WA

Washer


CAP-60

Retaining Cap

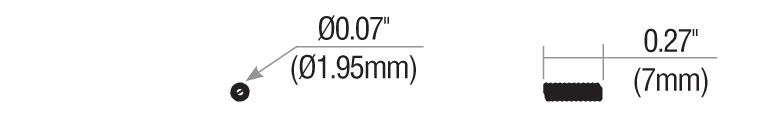

SPR-06

Retaining Pin Spring


RPIN-01

Retaining Pin

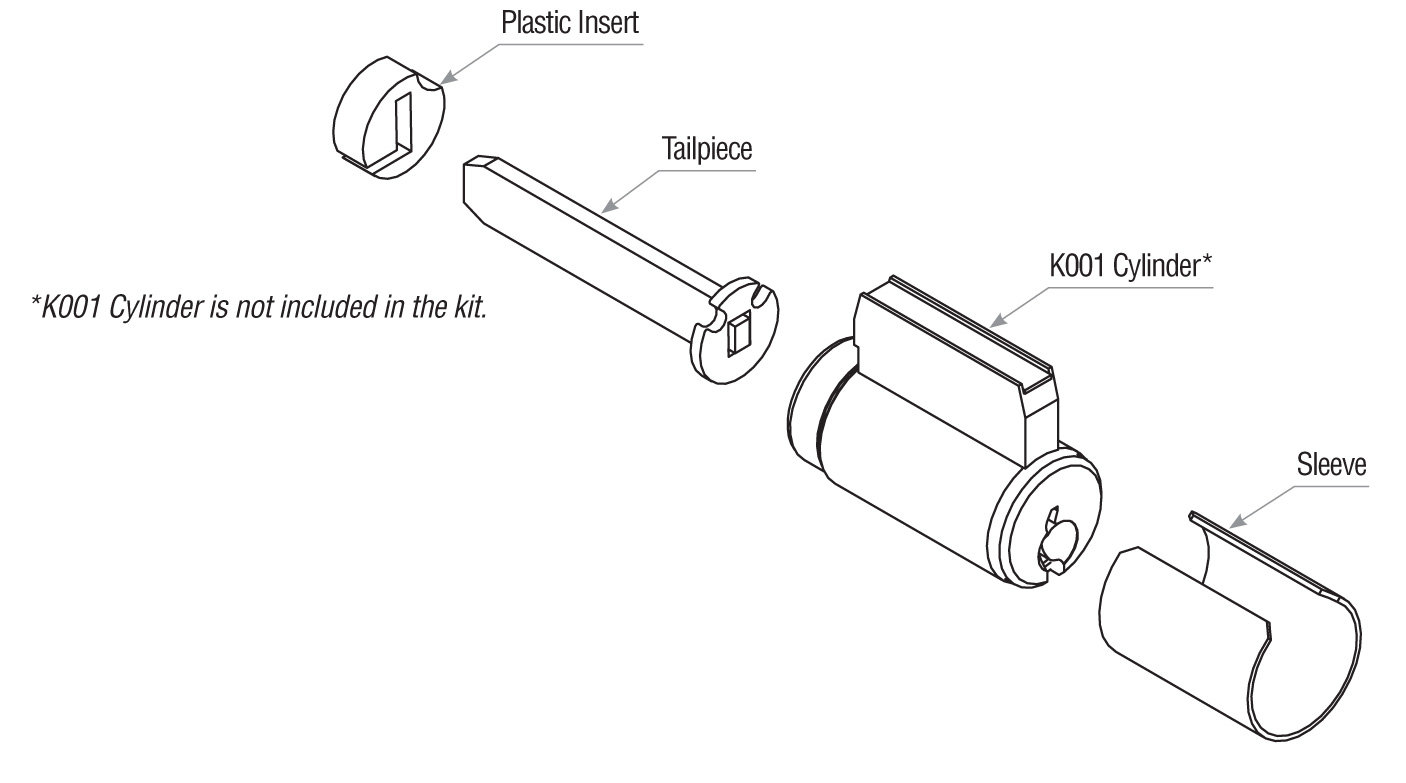

KIT-KOO1YA

Yale Conversion Kit
