GMS Large Format IC Core

GMS Large Format IC Core

GMS Lock Cylinders
$50.00
(No reviews yet)
Weight:
0.40 LBS
Width:
0.10 (in)
Height:
0.10 (in)
Depth:
0.10 (in)
Current Stock:
Adding to cart… The item has been added
Description
  • Solid brass construction
  • Replaces Schlage large format IC core
  • Available in 6-pin only
  • Two finishes: satin chrome and satin brass
  • 6 popular keyways

Model # Type
 LFIC Large format interchangeable core

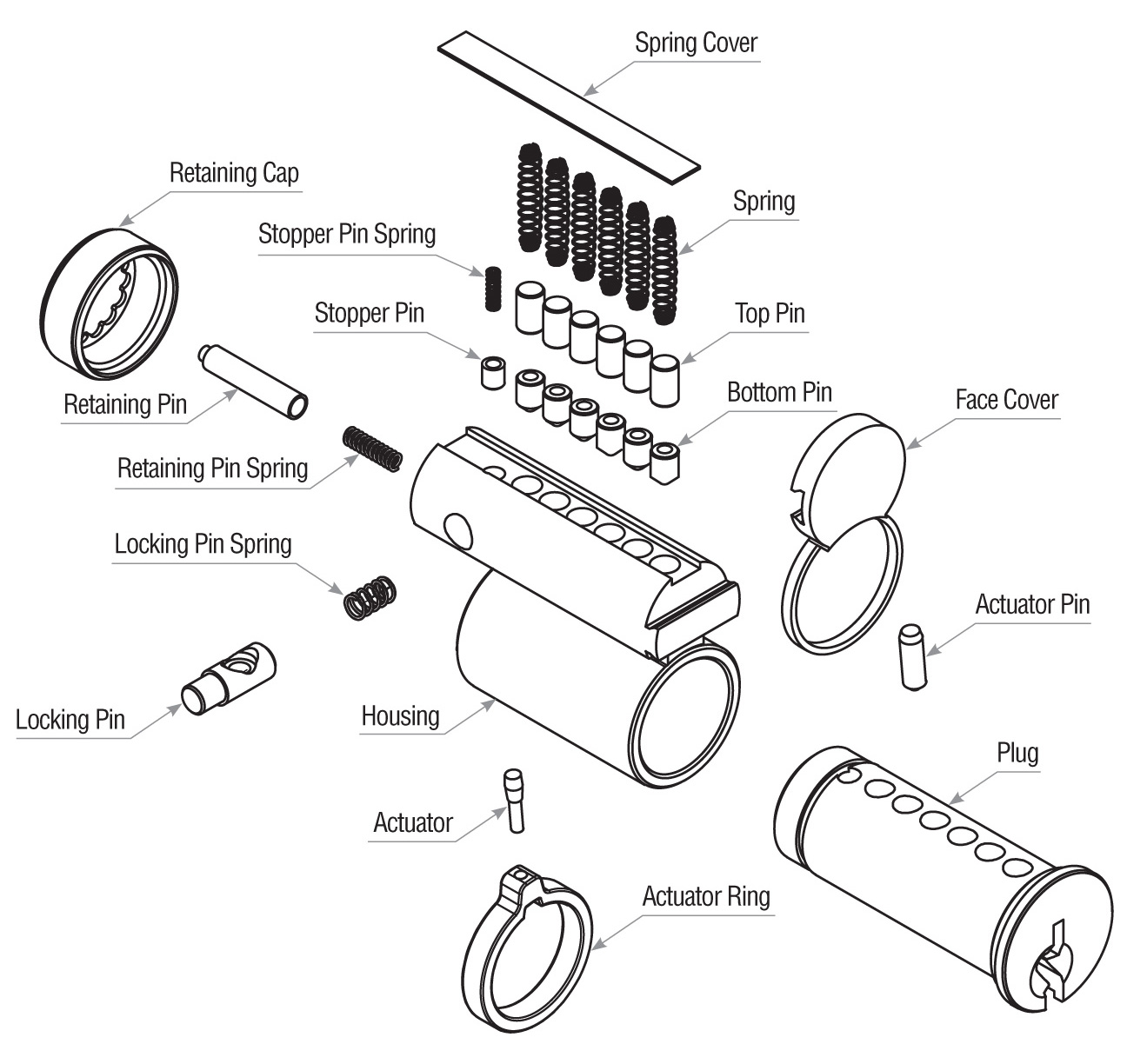

LFIC Core Schematic Drawing

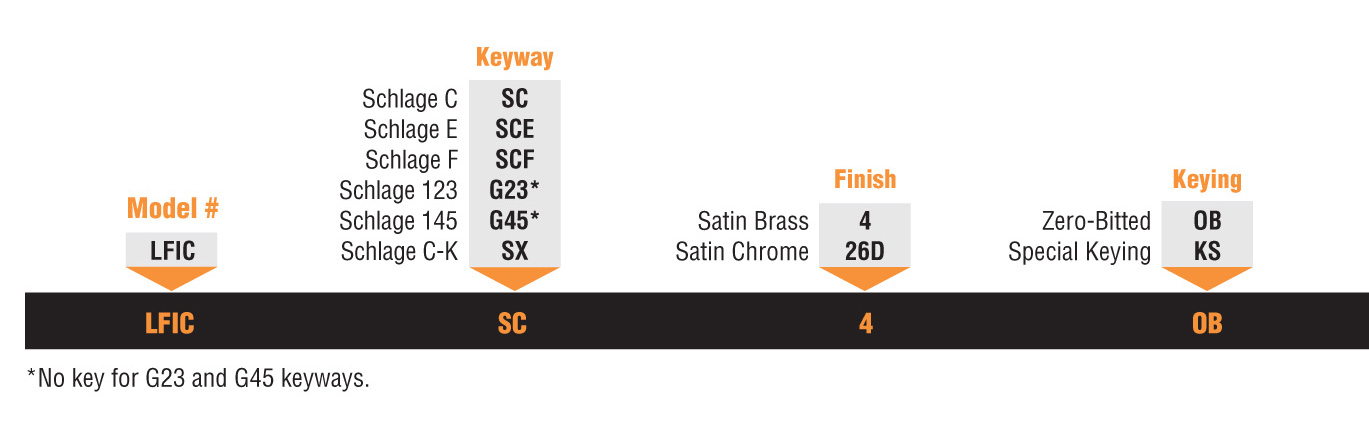

How to Order LFIC Cores
