GMS Large format mortise IC Housing

GMS Large Format Mortise IC Housing

GMS Lock Cylinders
$40.00
(No reviews yet)
Weight:
0.40 LBS
Width:
0.10 (in)
Height:
0.10 (in)
Depth:
0.10 (in)
Current Stock:
Adding to cart… The item has been added
Description



  • Compatible with Schlage, Yale, Sargent and Corbin IC cores
  • Interchangeable cams
  • Solid brass construction
  • 7 popular cams available
Model #  Type

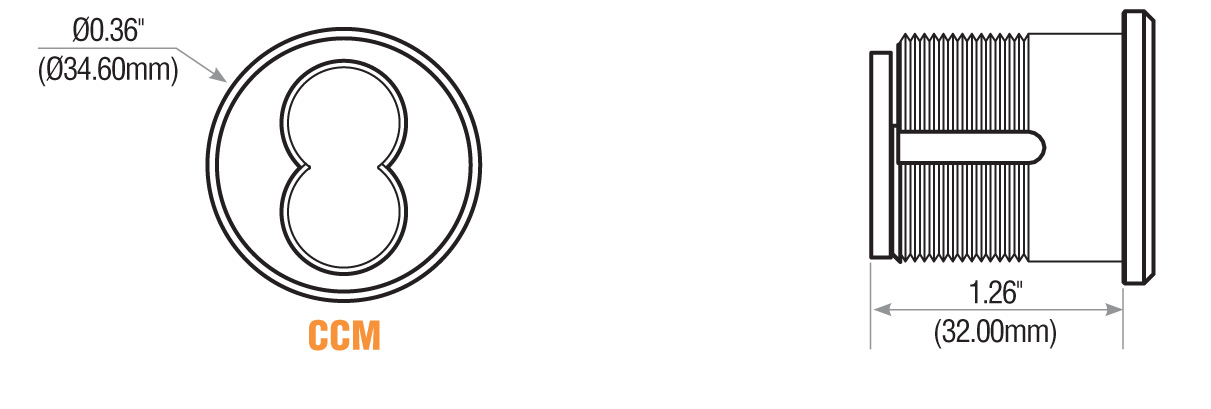

 CCM  LF Corbin IC Mortise Housing, Straight

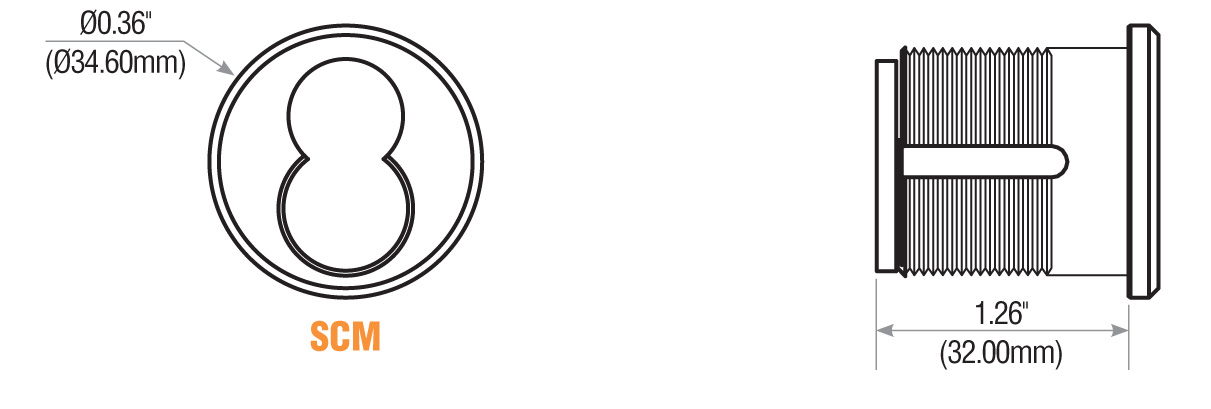

 SCM  LF Sargent IC Mortise Housing, Straight
 ICS*  LF Schlage IC Mortise Housing, Straight

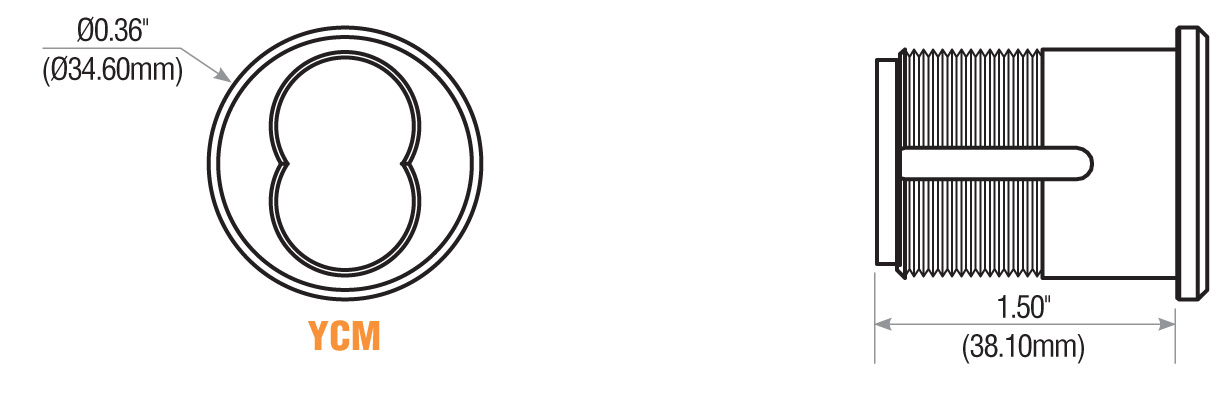

 YCM  LF Yale IC Mortise Housing, Straight
 *Scroll Down for ICS Order Infromation

ICS Mortise Housing Information

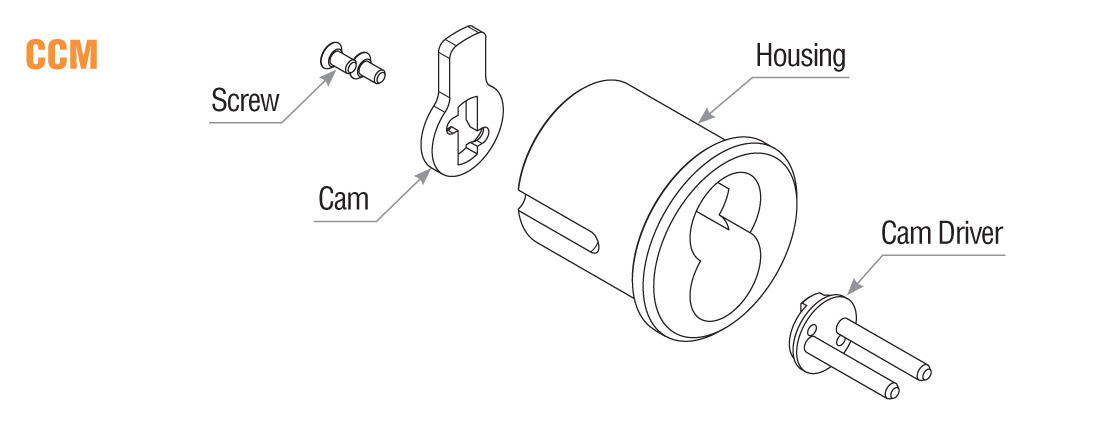

LFIC Mortise Housing Schematic Drawings


How to Order LFIC Mortise Housingshow-to-order-lfic.jpg

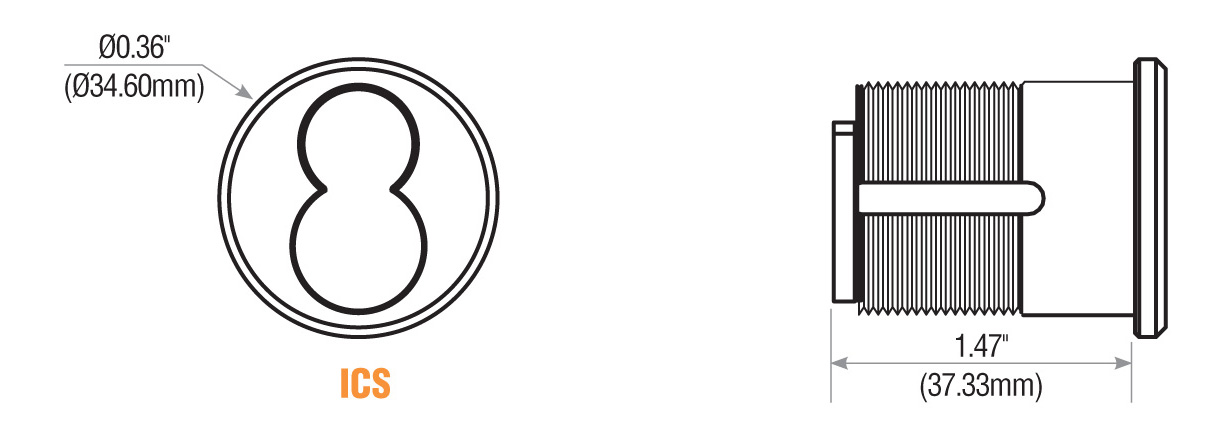

Information for ICS Mortise Housingsics.jpg

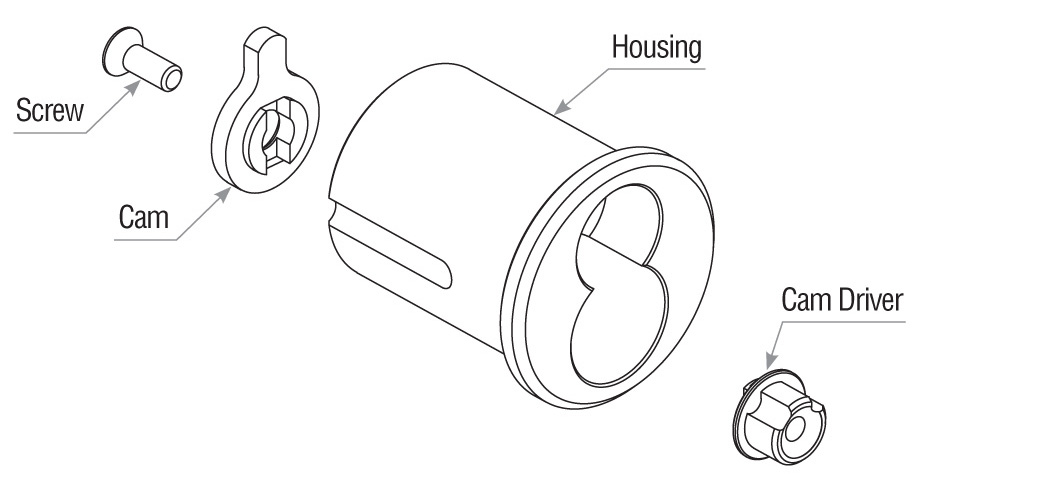

ICS Mortise Housing Schematic Drawingics-schematic.jpg

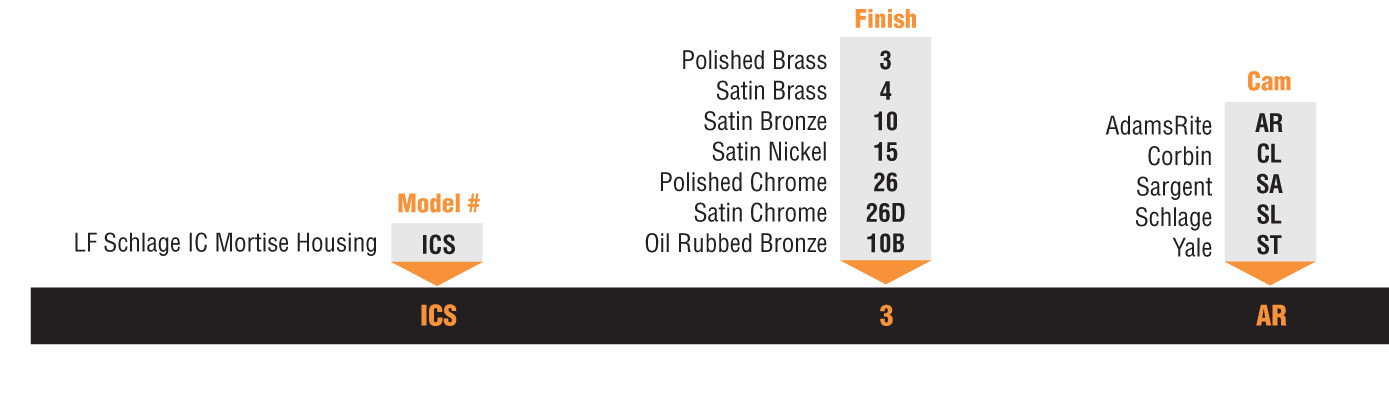

How to Order ICS Large Format Mortise Housingshow-to-order-ics.jpg
