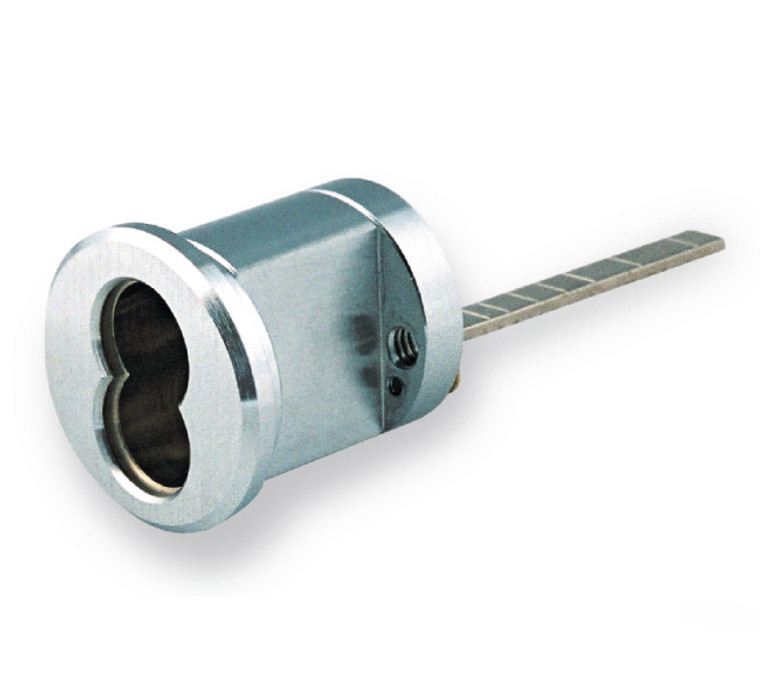

GMS Small & Large Format Rim IC Housing

GMS Small & Large Format Rim IC Housing

GMS Lock Cylinders
$30.00
(No reviews yet)
Weight:
0.40 LBS
Width:
0.10 (in)
Height:
0.10 (in)
Depth:
0.10 (in)
Current Stock:
Adding to cart… The item has been added
Description



  • ICR and ICXM is compatible with cores from Arrow, Best, Falcon and KSP
  • ICSR is compatible with Schlage large format IC cores
  • Furnished with collar, mounting plate & screws
  • Tailpiece converts between horizontal & vertical positions
  • Solid brass construction
Model #  Type
 ICR  Best Small IC Rim Housing

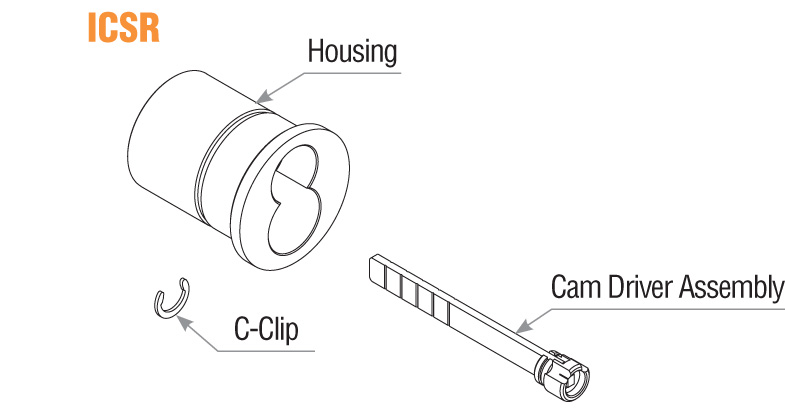

 ICSR  Schlage Large Rim Housing
 ICXM  IC Mortise/Rim Housing, Straight

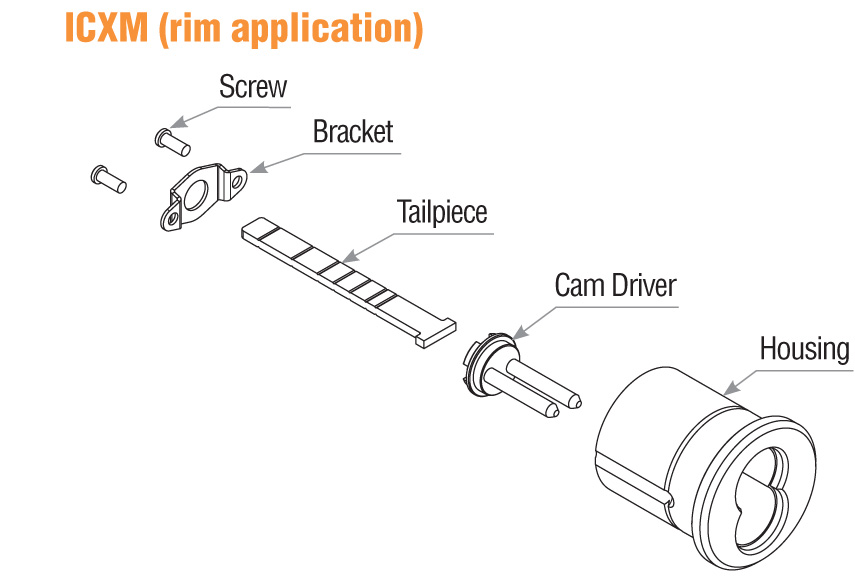

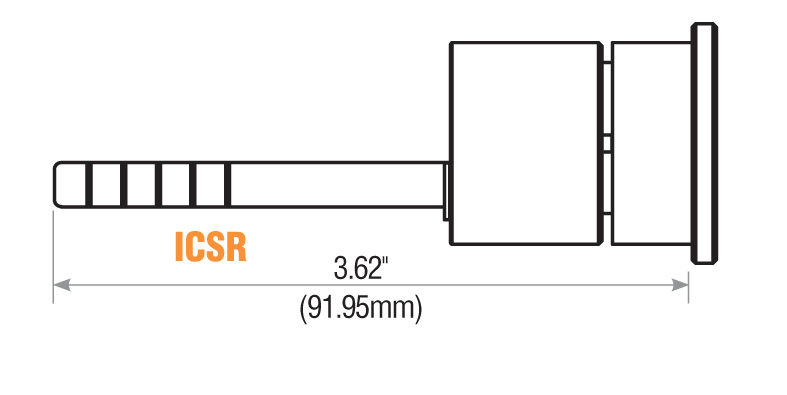

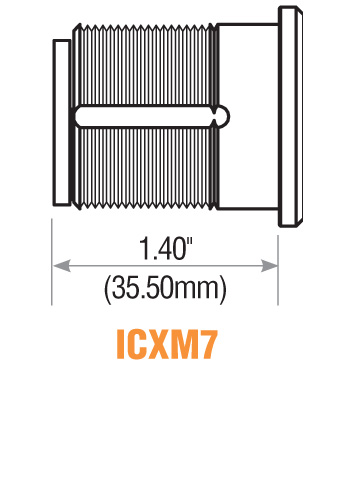

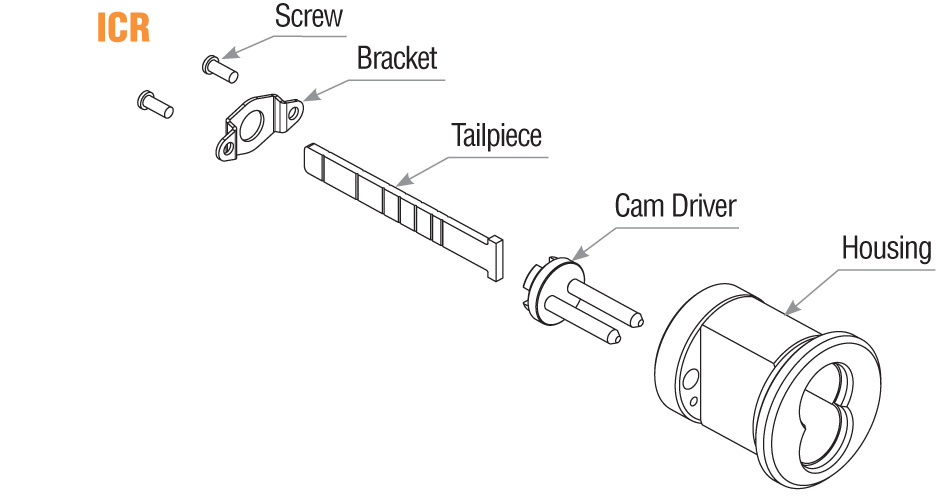

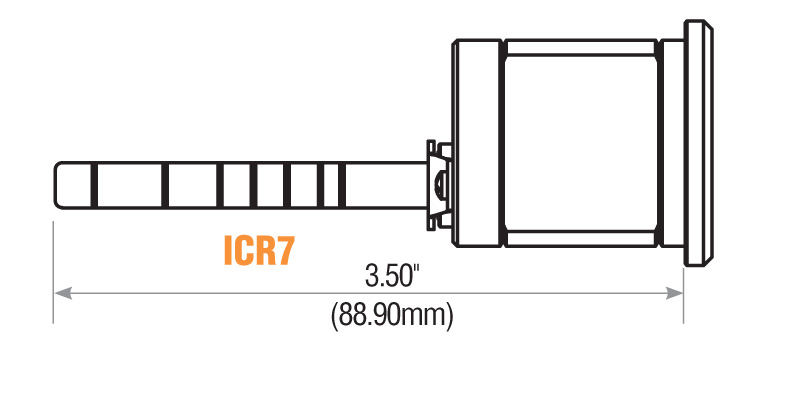

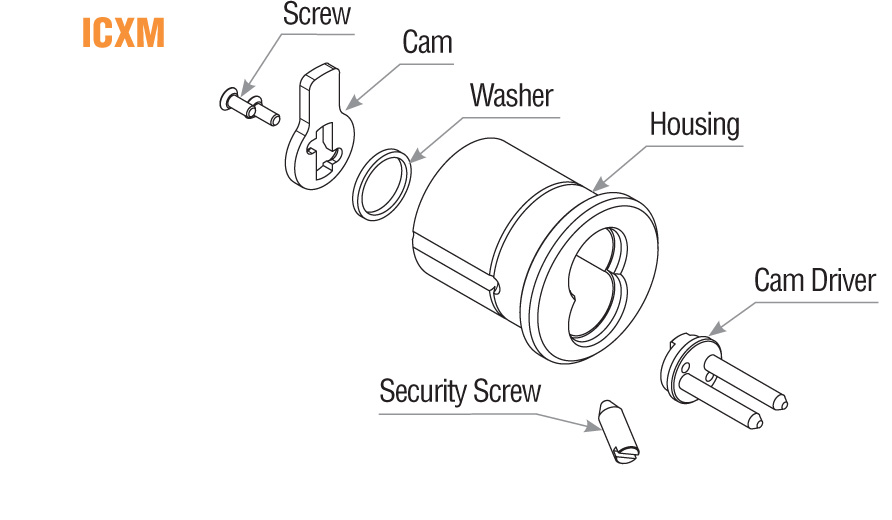

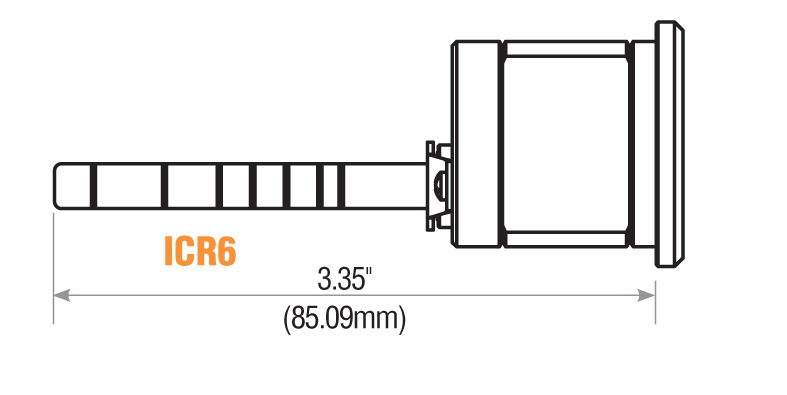

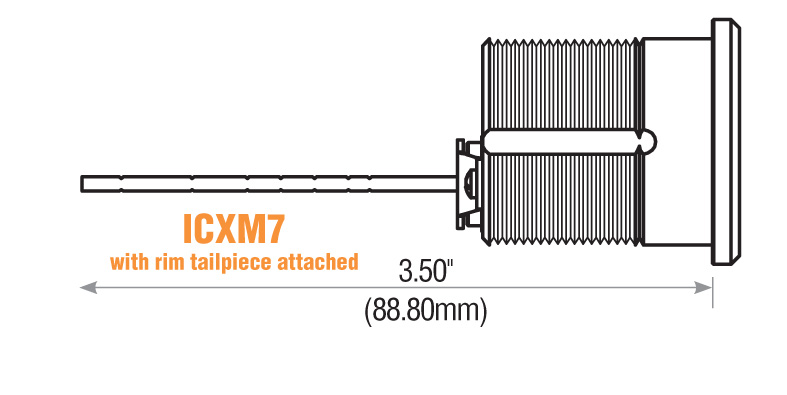

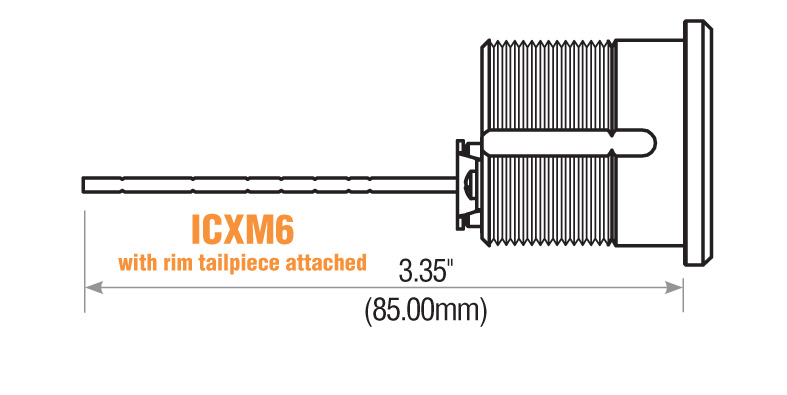

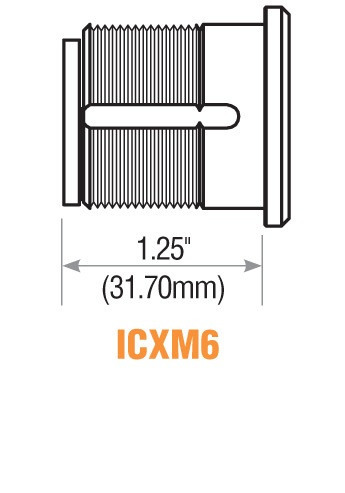

Rim IC Housing Schematic Drawings

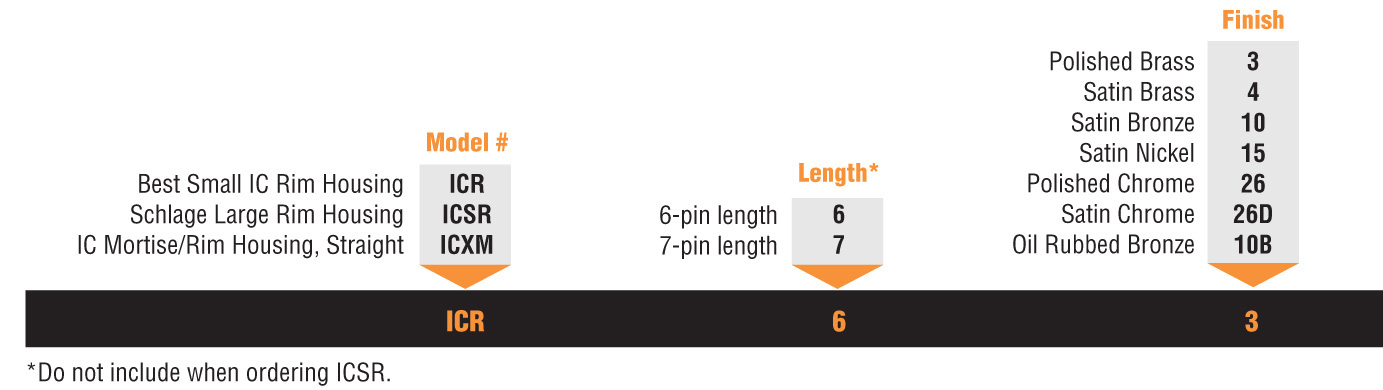

How to Order Rim IC Housingshow-to-order-rim-ic-housings.jpg

Information for ICS Mortise Housingsics.jpg


ICS Mortise Housing Schematic Drawingics-schematic.jpg

How to Order ICS Large Format Mortise Housingshow-to-order-ics.jpg
