Application
High Security deadbolt system for commercial and residential doors. If your door lock has a window nearby you should install a lock with a removable thumbturn. When removed, an intruder cannot unlock the door by breaking glass and reaching through. As well, if the intruder comes in for example through a basement window, he cannot leave unlock door to leave. Lets see him get that big screen television through that basement window.
Operation:

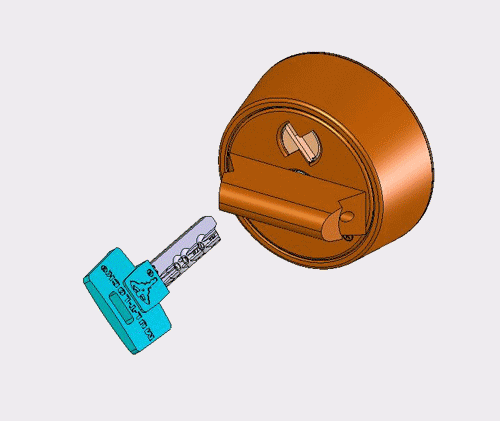

90˚ key rotation throws the bolt 1” toward the frame, interlocking two hardened ball bearings with the strike to increase jimmying resistance.
Materials:
Ring and cylinder: solid brass
Bolt anti drilling ring: hardened steel
Strike: steel
Pins: nickel silver and stainless steel
Standard finishs:
Bright Bright -3, Brushed Satin Chrome - 26D
Special finishs:
Antique brass - 5, Oil Rubbed Bronze - 10B, Satin Nickel - 15, Flat Black - 19, Bright Chrome - 17A
Additional features
• Suitable for two backsets, no need for different parts.
• Easy and friendly to install.
• The changeable faceplate has an expanded angle for installation on bevelled doors.
• Supplied as standard with 1” (25mm) throw.
• Optional as double or single cylinder.
• Thumbturn tail self-adjustable to door thickness.
• Option for captive key deadbolt
• Thumbturn can be set horizontally or vertically in locked position.
**Door thickness (spacers required for doors less than 38 mm thick)
|
